NVIDIA Quadro Digital Video Pipeline
Quadro DVP

The NVIDIA® Quadro® Digital Video Pipeline is the industry’s only GPU-accelerated solution for real-time acquisition, processing, and delivery of high-resolution video across standard and now 3D video broadcast environments.

Designed as an ultra-flexible platform, the Quadro Digital Video Pipeline leads the way for 3D video production and delivery. Developed for single or multi-camera environments, and with full support for stereoscopic 3D production workflows, the Quadro Digital Video Pipeline provides a direct feed of up to four HD SDI video streams directly into the GPU. As a tightly integrated solution, the Digital Video Pipeline is powered by a single workstation, enabling cost effective implementation of multi-camera 3D systems.

3D Stereo Production

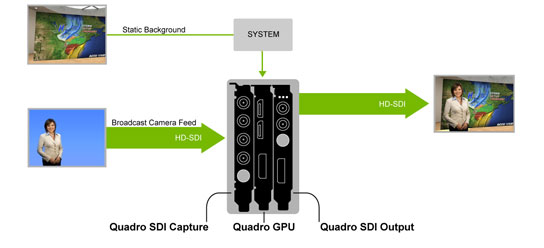

Digital Broadcast

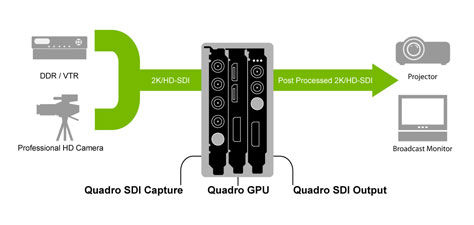

Film Production

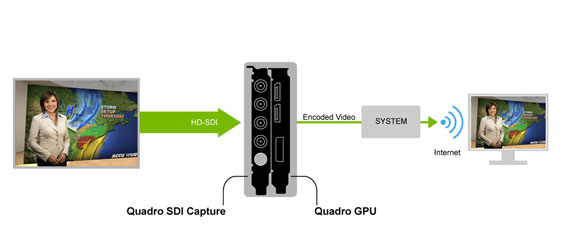

New Media

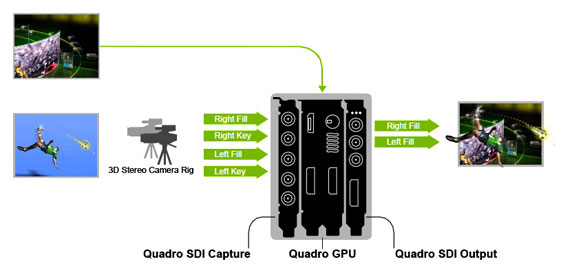

3D Stereoscopic Production
The Quadro Digital Video Pipeline is at the epicenter of the 3D stereoscopic production workflow.

    > Capture up to four video feeds from multi-camera environments, in real-time, directly to the GPU
    > Composite virtual 3D effects and video processing directly on the GPU
    > Broadcast the final result from the GPU directly to live TV or streamed over the internet

3D Stereo Production

3D Broadcast
3D Broadcast
The Quadro Digital Video Pipeline is the leading-edge platform for creating a new dimension in viewing. Setting the standard for 3D stereoscopic production and delivery through advanced SDK tools and unified drivers, developers can easily integrate into their applications using either OpenGL or Direct3D programming interfaces. Utilize the same drivers, removes the complexity of multi-threaded, programming to buffer video from devices of different vendors, creating a unified and integrated solution. Plus video professionals can preview content on stereo-ready displays when driven by Quadro solutions that include support for broad list of 3D stereo formats.

Quadro Digital Video Pipeline Solutions
Quadro SDI Capture

Quadro SDI Capture card enables multi-stream, uncompressed video to be streamed directly to Quadro SDI-enabled GPU memory

> Capture up to 4 HD-SDI Single link sources simultaneously
> Supports all SMPTE standard formats (3G, 2K, HD and SD) through 75 Ohm
        BNC connectors
> Indicator LEDs on the bracket provide easy error detection
> Monitor out can be used as a sync source for the optional SDI Output card

Quadro SDI Output

Quadro SDI Output card provides an integrated graphics-to-video solution enabling 2D and 3D effects to be composited in real-time with 2K, HD, and SD video (3G not currently supported)

> Enables genlock to external house sync or sync to Quadro SDI Capture card
> Supports 2K, HD and SD video formats uncompressed 8-bit, 10-bit or 12-bit SDI
> Combines with SDI-enabled Quadro graphics board

Quadro Fx

Quadro SDI-enabled professional graphics solutions for ultimate performance and features

> CUDA GPU architecture for compatibility with all CUDA-based applications
> Up to 6 GB of graphics memory
> Dual and single slot solutions
> Compatible solutions:


Quadro Solution Quadro 6000 Quadro 5000 Quadro 4000 Quadro FX 5800 Quadro FX 4800 Quadro FX 3800
Graphics Memory 6 GB 2.5 GB 2 GB 4 GB 1.5 GB 1 GB
CUDA Parallel Processing Cores 448 352 256 240 192 192
# of Slots Dual Dual Single Dual Dual Single
Software Development

The NVIDIA Quadro SDI SDK provides ease of programmability and control of the entire Quadro Digital Video pipeline – acquisition, processing and delivery. Be a registered developer and gain access to the SDK by completing this form.
