Display Configurations




Quadro® scalable visualization solutions provide professionals the flexibility to configure a wide range of environments based on display requirements. Quadro® GPUs, featuring NVIDIA® Mosaic™ technology, enable both the operating system and any professional application to transparently scale across multiple displays without software customization or performance degradation.

Display Configuration Options
Two to Four Displays

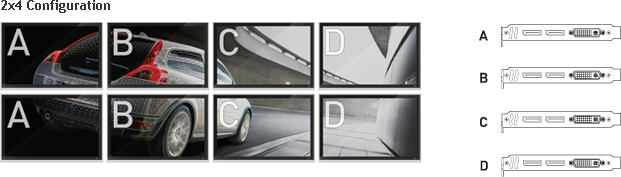

Five to eight Displays

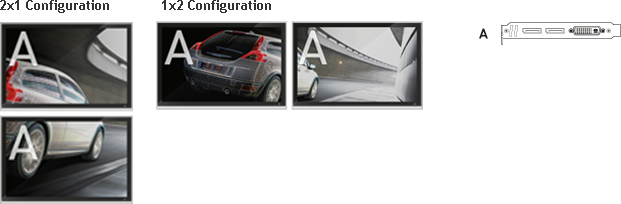

1x2 Configuration

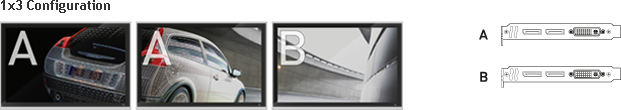

1x3 Configuration

2x2 Configuration

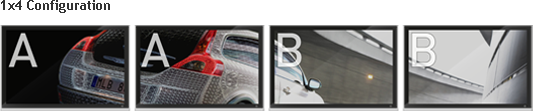

1x4 Configuration

* Images shown are representations of available display configurations.
   Actual configurations will vary based on the Quadro GPU installed.
   During setup, the NVIDIA® control panel will provide configuration guidelines.

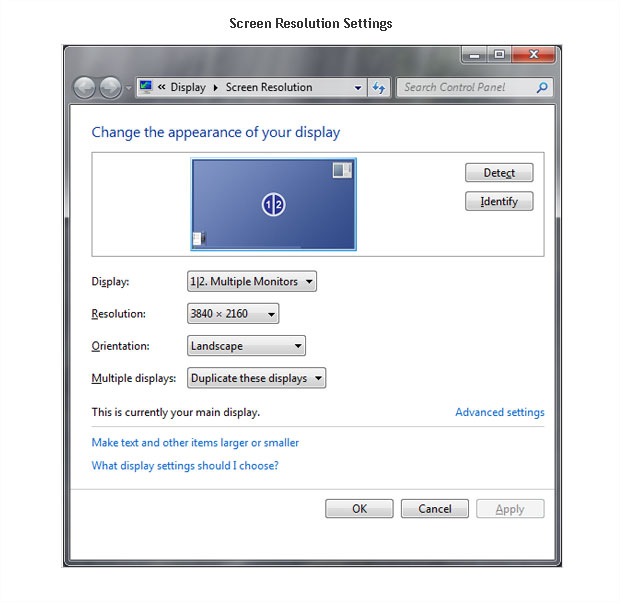

Display Settings

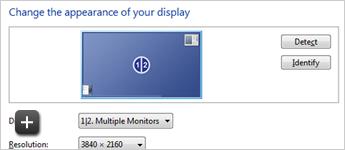

Mosaic technology present multiple-display configurations as a single display to the operating system. You can easily configure your solution using the NVIDIA control panel.

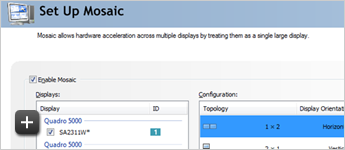

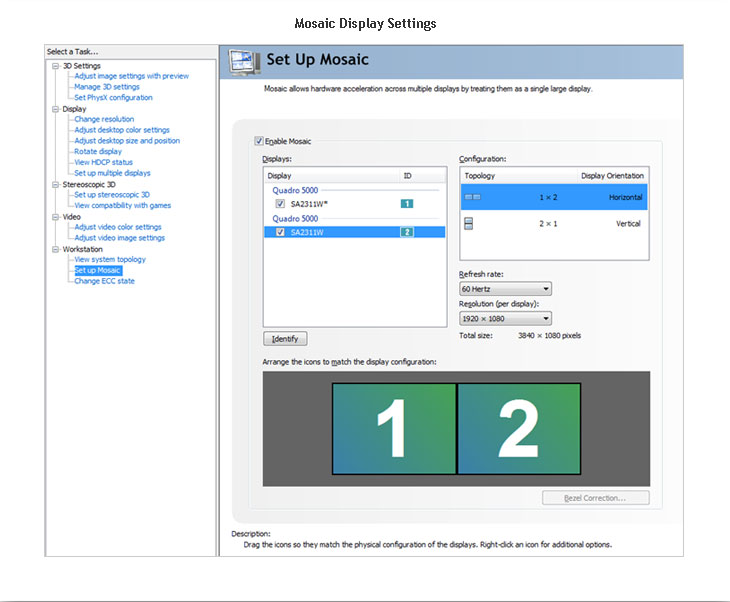

Set Up Mosaic Display Properties
