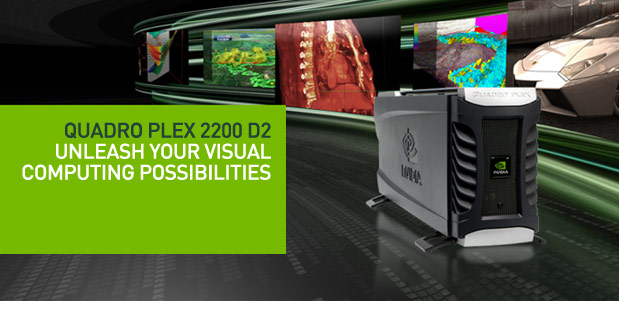

The Quadro® Plex 2200 D2 VCS (3U form factor) unleashes your visual computing possibilities. As a multi-GPU visual computing system, the Quadro Plex 2200 D2 delivers breakthrough levels of capability and productivity through a high-density, industry-standards-based architecture, giving geophysicists, scientists, engineers, and other technical professionals visual supercomputing power at their desktops.

Unleash Your Visual Computing Possibilities
Dual Quadro FX 5800 GPUs with 8 GB of frame buffer (4 GB per GPU) allows you to maximize your computing power. Combine high-performance graphics and high-performance computation for interactive analysis of complex, multivariate data.

Breakthrough Visual Computing Power
Professional users can dynamically scale graphics performance, get enhance image quality, and expand their display real estate with NVIDIA® SLI® multi-GPU technology. SLI Mosaic Mode enables transparent use of multiple Quadro GPUs with multiple displays presenting a single logical Quadro GPU to the operating system.
Feature available only on Models IV or later.

Maximize Image Quality, Resolution, and Display Size
Quadro Plex 2200 D2 features best-of-class display solutions with up to 128 SLI FSAA. The Quadro® G-Sync solution enables frame synchronization, genlock, and frame lock for further scaling of performance, quality, and resolution.

Industry-Standard Architectures
Built on proven Quadro GPUs and unified driver architecture, Quadro Plex 2200 D2 provides the flexibility to be set up with any certified PCI Express® x16 platform with Gen 2 support, and is certified on the industry’s leading professional applications. Deploy the visual supercomputer at your deskside or 3U rackmount form factor fits any standard 19” rack environment*.

*Rackmount option kit including mounting rails and hardware sold separately

NVIDIA® CUDA™
A C language environment and tool suite that unleashes new capabilities to solve complex, visualization challenges such as real-time ray tracing and interactive volume rendering.

Cg High-Level Graphics Shader Language
Cg—“C” for graphics—is a high-level, open-standard programming language for OpenGL that takes advantage of the power of programmable GPUs. NVIDIA Quadro® FX programmable graphics pipelines leverage high-level shading languages to enable the creation and integration of real-time photorealistic effects into 3D models, scenes, and designs. This represents a major leap forward in ease and speed for the creation of real-time, realistic graphics within MCAD, DCC, and scientific applications.

12-Bit Subpixel Precision
3x that of the nearest competitive workstation graphics, 12-bit sub-pixel precision delivers high geometric accuracy, eliminating spreckles, cracks, and other rasterization anomalies.

Full 128-Bit Precision Graphics Pipeline
Enables sophisticated mathematical computations to maintain high accuracy, resulting in unmatched visual quality. Full IEEE 32-bit floating-point precision per color component (RGBA) delivers millions of color variations with the broadest dynamic range.

4 GB Frame Buffer per GPU
Delivers high throughput for interactive visualization of large models and high-performance for real time processing of large textures and frames and enables the highest quality and resolution full-scene antialiasing (FSAA).

To download the Product Overview PDF - please click here.


Form Factor Deskside or 3U Rackmount Kit
NVIDIA Quadro GPU Quadro FX 5800
# NVIDIA Quadro GPUs 2
Total Frame Buffer 8 GB (4GB/GPU)
Option Quadro G-Sync
Display Channels 4 dual-link DVI
SLI Mosaic Mode checkmark.gif
Shader Model 4.0
NVIDIA® CUDA™ - C programming environment checkmark.gif
Genlock/frame lock checkmark.gif
Frame Synchronization checkmark.gif
FSAA (Max per Channel) 64x SLI FSAA
