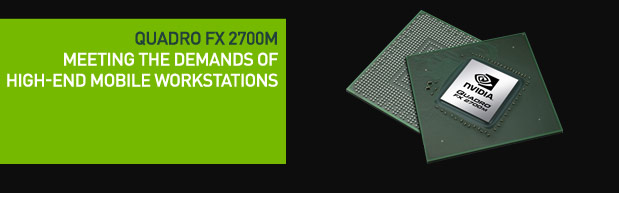

The Quadro® FX 2700M high-end mobile workstation graphics solution with its revolutionary unified architecture, delivers 512 MB memory, excellent image quality, and optimized visual computing application performance meeting the demands of a 17” mobile workstation. The reference standard for OpenGL 2.1, DirectX 10, and Shader Model 4.0, Quadro FX 2700M enables next generation applications with new levels of interactivity to meet the demands of CAD engineers, graphics designers, and other technical design professionals.

Meeting the demands of high-end mobile workstations
Visualize and interact with the largest datasets and most complex models in real time with a 512 MB GDDR3 local frame buffer, 256-bit memory interface, and 51.2 GBps memory bandwidth.


Stable, compatible, and optimized for professional applications
Certified for industry-leading computer-aided design (CAD), Digital Content Creation (DCC), and visualization applications.

Massively parallel computing capabilities
Array of 48 parallel processor cores harness massive floating point computing power.


Extended battery life
NVIDIA® PowerMizer® 8.0 technology intelligently adapts for longer battery life and optimal performance.

NVIDIA® CUDA™
A C language environment and tool suite that unleashes new capabilities to solve complex, visualization challenges such as real-time ray tracing and interactive volume rendering.

NVIDIA® PowerMizer® 8.0 Technology
The eighth generation of NVIDIA’s advanced hardware power management technology intelligently adaptively reduces the notebook power consumption and heat generation for the graphics subsystem, thereby enabling a truly mobile, cool and uncompromised user experience.

12-Bit Subpixel Precision
3x that of the nearest competitive workstation graphics, 12-bit sub-pixel precision delivers high geometric accuracy, eliminating spreckles, cracks, and other rasterization anomalies.

Cg High-Level Graphics Shader Language
Cg—“C” for graphics—is a high-level, open-standard programming language for OpenGL that takes advantage of the power of programmable GPUs. Quadro programmable graphics pipelines leverage high-level shading languages to enable the creation and integration of real-time photorealistic effects into 3D models, scenes, and designs.

Full 128-Bit Precision Graphics Pipeline
Enables sophisticated mathematical computations to maintain high accuracy, resulting in unmatched visual quality. Full IEEE 32-bit floating-point precision per color component (RGBA) delivers millions of color variations with the broadest dynamic range.

Hardware 3D Window Clipping
Hardware accelerated clip regions (data transfer mechanism between a window and the frame buffer) which improve overall graphics performance by increasing transfer speed between color buffer and frame buffer.


Processor Cores 48
Memory Size 512 MB
Memory Type GDDR3
Memory Interface 256 bits
Memory Bandwidt 51.2 GB/sec.
Platform Form factor 17"
Max Power Consumption (Graphics Sub System) 70W
OpenGL 2.1
Shader Model 4.0
DirectX 10
CUDA™ checkmark.gif
PowerMizer Power Management 8.0
