Hybrid SLI Technology

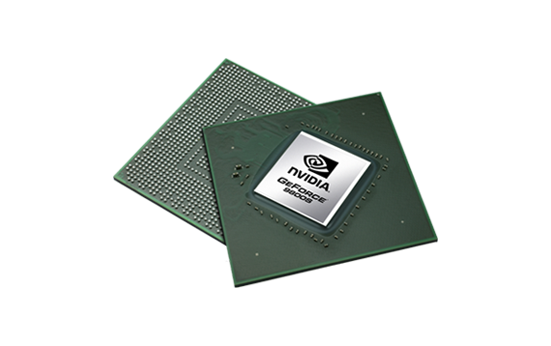

NVIDIA® Hybrid SLI® technology delivers multi-GPU benefits when an NVIDIA motherboard GPU is combined with an NVIDIA discrete GPU. With GeForce® 9800S, the essential benefit of this technology is the ability to extend the life of your battery considerably with HybridPower.
HybridPower Technology
NVIDIA® HybridPower™ technology is a key feature of Hybrid SLI, allowing you to unleash graphics performance when you need it, or instantly switch gears to a lower power mode from the motherboard GPU.
PureVideo HD Technology
Bring the latest Blu-ray movies to life with NVIDIA® PureVideo® HD technology. Sharp images, smooth video transitions, and vibrant colors are reproduced on the screen using very little CPU power. Integrated with the leading HD movie software players, PureVideo HD does the video decoding, instead of the power-hungry CPU, reducing fan noise and freeing the CPU for multitasking, so you never miss a scene.
nView Display Technology
You can spread your work across two displays with NVIDIA® nView® display technology so that you can easily compare information or multi-task with everything in sight.
Note: The below specifications represent this GPU as incorporated into NVIDIA's reference graphics card design. Graphics card specifications may vary by Add-in-card manufacturer. Please refer to the Add-in-card manufacturers' website for actual shipping specifications.
GPU Engine Specs:
Processor Cores |
64 |
Graphics Clock (MHz) |
600 MHz |
Processor Clock (MHz) |
1500 MHz |
Texture Fill Rate (billion/sec) |
19.2 |
Memory Specs:
Memory Clock (MHz) |
800 MHz |
Standard Memory Config |
1024 MB |
Memory Interface Width |
256-bit |
Memory Bandwidth (GB/sec) |
51.2 |
Feature Support:
NVIDIA SLI®-ready* |
2-Way |
NVIDIA PureVideo® Technology* |
HD |
NVIDIA PhysX™-ready* |
 |
NVIDIA CUDA™ Technology |
 |
HybridPower™ Technology* |
 |
Microsoft DirectX |
10 |
OpenGL |
2.1 |
Bus Support |
PCI-E 2.0 x16 |
Certified for Windows Vista |
 |
Display Support:
Maximum Digital Resolution |
800 MHz |
Maximum VGA Resolution |
1024 MB |
Standard Display Connectors |
256-bit |
Multi Monitor |
 |
HDCP* |
 |
HDMI* |
 |
Audio Input for HDMI |
SPDIF, HDA |
