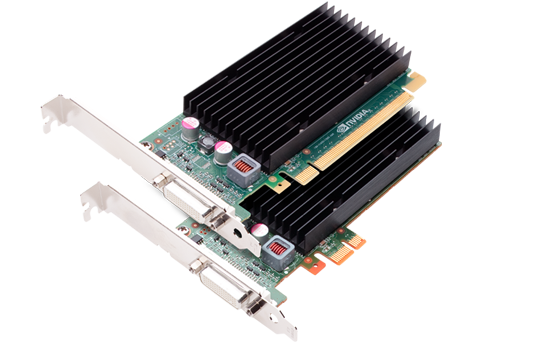

The NVIDIA® NVS™ 300 high resolution, multi-display business graphics solution, designed for small and standard form factor systems, delivers reliable hardware and software for a stable business environment. Tested on leading business applications, NVS 300 is capable of driving two VGA, single link DVI, DisplayPort or HMDI displays. With NVIDIA® Mosaic™ and NVIDIA® nView® technologies built in, you can span and efficiently manage your entire Windows desktop across multiple displays.
High Resolution Display Support
Drives ultra-high-resolution panels using integrated display technologies, producing phenomenal photorealistic image quality from a range of display connectors. Support two active displays including, single-link DVI with up to 1920x1200 @ 60Hz on each panel, DisplayPort with up to up to 2560 x 1600 @ 60 Hz, or VGA up to 2048x1526 @ 85Hz.
|
 |
Intelligent Power Management
NVIDIA Power Management technology helps reduce the overall system energy cost, by intelligently adapting the total power utilization of the graphics subsystem based on the applications being run by the end user. |
nView Advanced Desktop Software
The NVIDIA nView Advanced Desktop Software delivers maximum flexibility for single-large display or multi-display options, providing unprecedented end-user control of the desktop experience for increased productivity. |
 |
Multi-Display Experience with Mosaic Technology
NVIDIA Mosaic Technology enables seamless taskbar spanning as well as transparent scaling of any application across up to 8 displays. Works over multiple displays or one ultra-high resolution display using a single or multiple NVS graphics cards1. |
Graphics and Systems Features
Fast 512 MB DDR3 graphics memory
Delivers high throughput to simultaneously play stunning HD video on each connected display.
Intelligent Power Management
NVIDIA Power Management technology helps reduce the overall system energy cost, by intelligently adapting the total power utilization of the graphics subsystem based on the applications being run by the end user.
CUDA
16 CUDA GPU parallel computing cores compatible with all NVIDIA® CUDA™ accelerated applications. CUDA provides a C language environment and tool suite that unleashes new capabilities to solve various visualization challenges.
Ultimate Image Quality
NVIDIA® NVS™ graphics products deliver the industry’s best image quality, sharpness and pixel tracking for both analog and digital LCDs, DLPs and plasma displays with resolutions up to 2560x1600.
Low-Profile and Flexible Form Factor
Enables multi-display commercial graphics capabilities in space saving small form factor as well as standard sized systems. Available in native PCI Express x16 and x1 versions for increased flexibility.
Fanless design
Built with a passive heatsink for higher reliability and a quieter desktop environment.
Display and Video Features
Versatile Display Connectivity Options
Provides a means to connect into the most exhaustive range of display technologies in a low profile graphics card via low cost DMS59 cable adaptors.
High Resolution Display Support
Drives ultra-high-resolution panels using integrated display technologies, producing phenomenal photorealistic image quality from a range of display connectors. Support two active displays including, single-link DVI with up to 1920x1200 @ 60Hz on each panel, DisplayPort with up to up to 2560 x 1600 @ 60 Hz, or VGA up to 2048x1526 @ 85Hz.
Dual DisplayPort (with audio)
Support ultra-high-resolution panels (up to 2560 x 1600 at 30bpp) via DMS59-DisplayPort adaptors – enabling maximum range, resolution, refresh rate, and color depth designed to support the latest display technologies.
Dual HDMI Support
Enables transport of video and audio to HDTV’s and other HDMI capable devices (via HDMI adaptor).
NVIDIA High Definition Video Technology
NVIDIA high definition video technology is the combination of high-definition video processors and software that delivers unprecedented picture clarity, smooth video, accurate color, and precise image scaling for SD and HD video content. Features include, high-quality scaling, spatial temporal de-interlacing, inverse telecine and high quality HD video playback —with low CPU utilization and power consumption.
Software Features
nView Advanced Desktop Software
The NVIDIA® nView® Advanced Desktop Software delivers maximum flexibility for single-large display or multi-display options, providing unprecedented end-user control of the desktop experience for increased productivity.
Multi-Display Experience with Mosaic Technology
NVIDIA® Mosaic™ Technology enables seamless taskbar spanning as well as transparent scaling of any application across up to 8 displays. Works over multiple displays or one ultra-high resolution display using a single or multiple NVS graphics cards[i].
Unified Driver Architecture (UDA)
Part of the NVIDIA Forceware unified software environment (USE). The NVIDIA UDA guarantees forward and backward compatibility with software drivers. Simplifies upgrading to a new NVIDIA product because the latest driver supports all current NVIDIA products.
Microsoft Windows 7 Support
Windows 7 operating system marks a dramatic improvement in the way the OS takes advantage of the graphics processing unit (GPU) to provide a more compelling user experience. By taking advantage of the GPU for both graphics and computing, Windows 7 not only makes today’s PCs more visual and more interactive but also ensure that they have the speed and responsiveness customers want.
Industry Standards
Compatible with Industry Standard Architectures
Compatible with x86 32 and 64-bit microprocessor architectures and operating systems from Intel/AMD and Microsoft/Linux.
EnergyStar Enabling Design
Enables EnergyStar compliance with low maximum and low idle power levels.
PCI Express 2.0 Compliant
Enables a data transfer rate up to 5 GT/sec per lane for an aggregate bandwidth of 16 GB/sec bi-directional (8 GB/sec in each direction).
