Microsoft® DirectX® 11 Support

DirectX 11 GPU with Shader Model 5.0 support designed for ultra high performance in the new API’s key graphics feature, GPU-accelerated tessellation.

Blu-Ray 3D Support*

Enable a theater quality 3D in your home with seamless support for 1080p Blu-Ray 3D discs across any compatible 3D viewing system over HDMI, including active-shutter glasses and passive polarized displays.

Hardware Video Decode Acceleration**

The combination of high-definition video decode acceleration and post-processing that delivers unprecedented picture clarity, smooth video, accurate color, and precise image scaling for movies and video.

TrueHD and DTS-HD Audio Bitstreaming Support

Full support for TrueHD and DTS-HD advanced lossless multi-channel HD audio codecs brings the rich sound of the master recording to your living room.

NVIDIA CUDA™ Technology

CUDA technology unlocks the power of the GPU’s processor cores to accelerate the most demanding tasks such as video transcoding, physics simulation, ray tracing, and more, delivering incredible performance improvements over traditional CPUs.

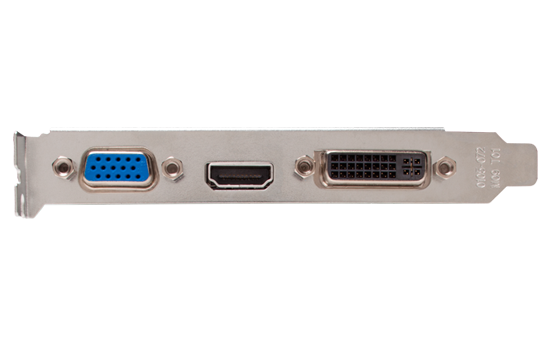

HDMI Output

Support for HDMI output enables sending both high-definition video and audio signals to an HDTV via a single cable.***

Dual-link DVI Support

Able to drive industry’s largest and highest resolution flat-panel displays up to 2560x1600 and with support for High-bandwidth Digital Content Protection (HDCP).

PCI Express 2.0 Support

Designed for the new PCI Express 2.0 bus architecture offering the highest data transfer speeds for the most bandwidth-hungry games and 3D applications, while maintaining backwards compatibility with existing PCI Express motherboards for the broadest support.

* 3D Vision requires NVIDIA 3D Vision glasses and a 3D Vision-Ready display. See www.nvidia.co.in/object/3d-vision-home-users-in.html for more information.
** Supported video software is required to experience certain features. Visit www.nvidia.co.in for more details.
*** Supported only on R260 or later.

GPU Engine Specs: CUDA Cores 48 Graphics Clock (MHz) 810 MHz Processor Clock (MHz) 1620 Texture Fill Rate (billion/sec) 6.5 Memory Specs: Memory Clock (MHz) Up to 898MHz Standard Memory Config 1 GB or 2GB DDR3 Memory Interface Width 64-bit Memory Bandwidth (GB/sec) 14.4 SDRAM type - not displayed separately, combined with Memory Interface. DDR3 Feature Support: Blu Ray 3D 3D Vision Live (Photos and Videos) NVIDIA CUDA™ Technology Microsoft DirectX 11 OpenGL 4.1 Bus Support PCI-E 2.0 x16 Certified for Windows 7		Display Support: Maximum Digital Resolution 2560x1600 Maximum VGA Resolution 2048x1536 Standard Display Connectors VGA, HDMI, DVI-I, DP Multi Monitor HDCP HDMI* Audio Input for HDMI Internal Standard Graphics Card Dimensions: Height 2.731 inches Length 5.7 inches Width Single Slot Thermal and Power Specs: Maximum GPU Tempurature (in C) 102 Maximum Graphics Card Power (W) 29
* Support for HDMI including GPU accelerated Blu-ray 3D support (Blu-ray 3D playback requires the purchase of a compatible software player from CyberLink, ArcSoft, Corel, or Sonic), x.v.Color, HDMI Deep Color, and 7.1 digital surround sound will be added in a Release 260 driver. Upgrade your GPU to full 3D capability with NVIDIA 3DTV Play software, enabling 3D gaming, picture viewing and 3D web video streaming. See www.nvidia.co.in/3dtv for more details.
