GeForce GTX 770 Graphics Cards

Fast just got faster with the next-generation GeForce GTX 770.

Checking for products...
Where To Buy

Overview

Fast just got faster with the next-generation GeForce® GTX 770, a high-performance graphics card designed from the ground up to deliver high-speed, super-smooth PC gaming. It’s stacked with unique gaming technologies like NVIDIA GPU Boost 2.0 that make it fast. Really fast. With GTX 770, nothing will hold you back from taking on—and dominating—your most challenging PC games.

GTX 770 Announcement Video

GTX 770 Announcement Video

Get a first look at how GTX 700-series graphics cards offer the latest evolution in high performance.

The 700 Series Website

Experience GTX 770, including its improved performance, GeForce Experience™, and gaming technologies.

GTX 770 Graphics Card Performance Specs

GTX 770 Graphics Card Performance Specs

See how GeForce GTX 770 performs in the latest PC games.

GeForce Experience

GeForce Experience™

The easiest way to keep your drivers up to date and optimize your games.

Watch the GeForce Experience Video - A walkthrough of the GeForce Experience application.

Game Performance

Features


NVIDIA GPU Boost 2.0

NVIDIA GPU Boost 2.0

This brand new technology allows gamers to push PC performance to the maximum with precise controls. GPU Boost 2.0 intelligently monitors work with even more advanced controls like GPU temperature target, overclocking, and overvoltage to ensure the GPU works at the ultimate performance.


GeForce Experience

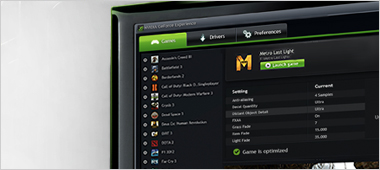

GeForce Experience

The easiest way to optimise your games and keep your drivers up to date, The GeForce Experience application automatically notifies you of new driver releases from NVIDIA. With a single click, you’ll be able to update the driver directly, without leaving your desktop.


Two New Anti-aliasing Modes: FXAA and TXAA

Two New Anti-aliasing Modes: FXAA and TXAA

Anti-aliasing smoothes out jagged edges but can be demanding on framerates. FXAA is a new antialiasing technology that produces beautiful smooth lines with minimal performance impact. And with Kepler based GPUs, you'll be able to enable FXAA in hundreds of game titles through the NVIDIA Control Panel.

The second mode, TXAA, is an in-game option that combines MSAA, temporal filtering, and post processing for even higher visual fidelity.


NVIDIA Adaptive Vertical Sync

NVIDIA Adaptive Vertical Sync

Nothing is more distracting than framerate stuttering and screen tearing. The first tends to occur when framerates are low, the second when framerates are high. Adaptive V-Sync is a smarter way to render frames. At high framerates, V-sync is enabled to eliminate tearing, at low frame rates, it's disabled to minimize stuttering. It gets rid of distractions so you can get on with gaming.



Specifications

GeForce GTX 770

GPU Engine Specs

CUDA Cores

1536

Base Clock

1046 MHz

Boost Clock

1085 MHz

Texture Fill Rate

134

Memory Specs

Memory Speed ( Gbps )

7.0

Memory Amount

2048 MB

Memory Interface

256-bit GDDR5

Max Bandwidth

224.3

Card Features

FXAA and TXAA

SLI Ready

Purevideo

3D Vision

PhysX

Programming Environment

CUDA

DirectX

11

OpenGL

4.3

Bus Type

PCI-E 3.0

3D Gaming

Blu Ray 3D

Specifications

Maximum Digital Resolution

4096x2160

Max VGA Resolution

2048x1536

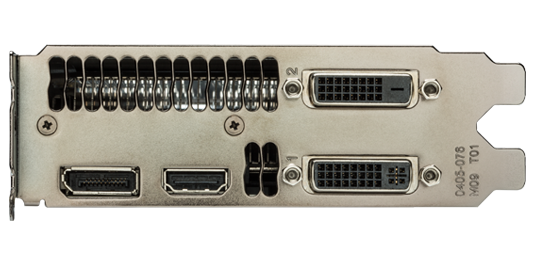

Media Connection

  • Dual Link DVI-D
  • HDMI
  • Dual Link DVI-I
  • DisplayPort

Multi-Display

HDCP

HDMI

HDMI Audio

Internal

Dimensions

Height

11.12 cm / 4.376 Inches

Length

26.67 cm / 10.5 Inches

Width

Dual Slot

Power and Temperature

Maximum Temperature

98

Power Consumption

230 W

Minimum Power Requirement

600 W

Power Connections

6-pin & 8-pin

Maximum Digital Resolution - 3840x2160 at 30Hz or 4096x2160 at 24Hz supported over HDMI. 4096x2160 (including 3840x2160) at 60Hz supported over Displayport. Support for 4k tiled MST displays requires 326.19 driver or later.
