Geforce

GeForce GTX 760 Graphics Cards

GeForce GTX 760 is a powerful, feature-rich graphics card stacked with advanced PC gaming technologies like NVIDIA® GeForce® Experience™, GPU Boost 2.0, PhysX®, and much more.

Checking for products...
Where To Buy

Overview

GeForce GTX 760 is a powerful, feature-rich graphics card stacked with advanced PC gaming technologies like NVIDIA® GeForce® Experience™, GPU Boost 2.0, PhysX®, and much more. This gives you the performance edge you need to take on the latest next-generation PC game titles. It’s serious equipment for the serious gamer.

GTX 760 Launch Video

GTX 760 Launch Video

NVIDIA’s Andrew Coonrad explains what makes the GeForce GTX 760 the new weapon of choice for PC gamers. Watch Video.

Explore the 700 Series Microsite

Learn about the GTX 700 Series, including improved performance and technologies like NVIDIA GeForce Experience™ and GPU Boost 2.0.

GTX 760 Graphics Card Performance Specs

GTX 760 Graphics Card Performance Specs

See how GeForce GTX 760 performs in the latest PC games.

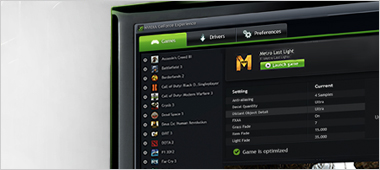

GeForce Experience

GeForce Experience™

The easiest way to keep your drivers up to date and optimize your games.

Watch the GeForce Experience Video - A walkthrough of the GeForce Experience application.

Game Performance

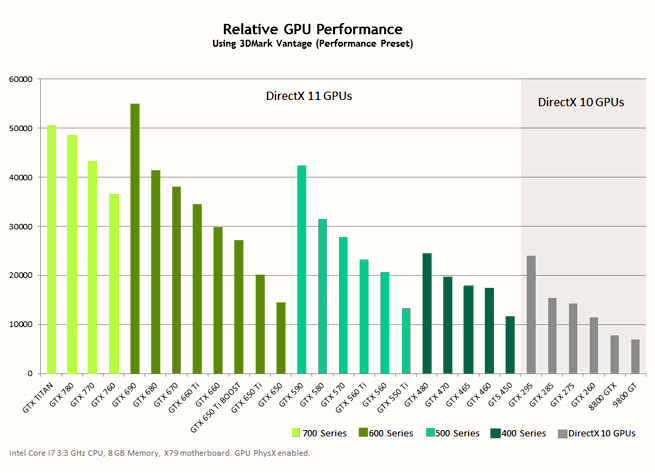

Relative GPU Performance

Features


NVIDIA GPU Boost 2.0

NVIDIA GPU Boost 2.0

This brand new technology allows gamers to push PC performance to the maximum with precise controls. GPU Boost 2.0 intelligently monitors work with even more advanced controls like GPU temperature target, overclocking, and overvoltage to ensure the GPU works at the ultimate performance.


GeForce Experience

GeForce Experience

The easiest way to optimise your games and keep your drivers up to date, The GeForce Experience application automatically notifies you of new driver releases from NVIDIA. With a single click, you’ll be able to update the driver directly, without leaving your desktop.


Two New Anti-aliasing Modes: FXAA and TXAA

Two New Anti-aliasing Modes: FXAA and TXAA

Anti-aliasing smoothes out jagged edges but can be demanding on framerates. FXAA is a new antialiasing technology that produces beautiful smooth lines with minimal performance impact. And with Kepler based GPUs, you'll be able to enable FXAA in hundreds of game titles through the NVIDIA Control Panel.

The second mode, TXAA, is an in-game option that combines MSAA, temporal filtering, and post processing for even higher visual fidelity.


NVIDIA Adaptive Vertical Sync

NVIDIA Adaptive Vertical Sync

Nothing is more distracting than framerate stuttering and screen tearing. The first tends to occur when framerates are low, the second when framerates are high. Adaptive V-Sync is a smarter way to render frames. At high framerates, V-sync is enabled to eliminate tearing, at low frame rates, it's disabled to minimize stuttering. It gets rid of distractions so you can get on with gaming.



Specifications

GeForce GTX 760

GPU Engine Specs

CUDA Cores

1152

Base Clock

980

Boost Clock

1033

Texture Fill Rate

94.1

Memory Specs

Memory Speed ( Gbps )

6.0

Memory Amount

2048 MB

Memory Interface

256-bit GDDR5

Max Bandwidth

192.2

Card Features

FXAA and TXAA

SLI Ready

Purevideo

3D Vision

PhysX

Programming Environment

CUDA

DirectX

11

OpenGL

4.3

Bus Type

PCI-E 3.0

3D Gaming

Blu Ray 3D

Specifications

Maximum Digital Resolution

4096x2160

Max VGA Resolution

2048x1536

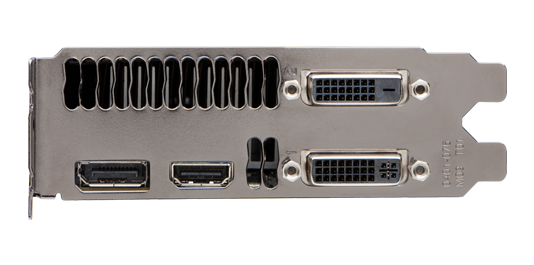

Media Connection

  • HDMI
  • Dual Link DVI-I
  • Dual Link DVI-D
  • DisplayPort

Multi-Display

HDCP

HDMI

HDMI Audio

Internal

Dimensions

Height

11.11 cm / 4.376 Inches

Length

24.13 cm / 9.5 Inches

Width

Dual Slot

Power and Temperature

Maximum Temperature

97

Power Consumption

170 W

Minimum Power Requirement

500 W

Power Connections

6-pin x2

Maximum Digital Resolution - 3840x2160 at 30Hz or 4096x2160 at 24Hz supported over HDMI. 4096x2160 (including 3840x2160) at 60Hz supported over Displayport. Support for 4k tiled MST displays requires 326.19 driver or later.



Where To Buy

Support

Hardware Support

Technical Support, RMA requests, replacements, and warranty issues for your NVIDIA designed and built graphics cards will be handled by NVIDIA.
Please click here to be directed to the GeForce Graphics Cards by NVIDIA customer support page. If you purchased your GeForce graphics card from one of our board partners, click here.

Downloads

Drivers

Drivers

Download the latest release or beta drivers for your product



Product appearance may vary by manufacturer
