Geforce

GeForce GTX 660

The weapon of choice for Gamers.

Checking for products...
Where To Buy

Overview

The GeForce GTX 660 graphics card combines power, performance, and affordability. GPU Boost dynamically boosts clock speed for extra performance. New anti-aliasing modes eliminate jaggies without sacrificing framerate and NVIDIA Surround lets you game on three monitors from a single graphics card.

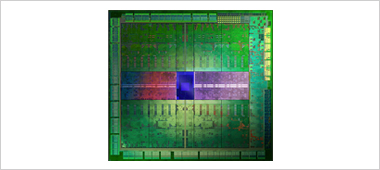

Kepler Architecture

Kepler Architecture

Kepler is our most advanced GPU architecture yet. Optimized for DirectX 11, Kepler is not only fast, but ultra power efficient.



Product Video

Andrew Coonrad, Technical Marketing Guru, introduces the GeForce GTX 650 and GTX 660.

Faster Performance

Faster Performance

GPU Boost dynamically boosts clock speed to bring out the best performance in every game.

Smoother Framerates

Smoother Framerates

Adaptive V-Sync intelligently renders each frame to minimize tearing while maximizing performance.

Richer Gameplay

Richer Gameplay

Enjoy your PC games across three monitors in NVIDIA Surround mode. Turn on PhysX and 3D Vision for extra immersion.

Features

Kepler GPU Architecture

Kepler GPU Architecture

NVIDIA's Kepler GPU architecture has been designed from the ground up not just for maximum performance in the latest DirectX 11 games, but optimal performance per watt. The new SMX streaming multiprocessor is twice as efficient as the prior generation and the new geometry engine draws triangles twice as fast. The result is world class performance and the highest image quality in an elegant and power efficient graphics card.


NVIDIA GPU Boost

NVIDIA GPU Boost

Up until now, GPUs have operated at a fixed clock speed when playing 3D games, even if they have the potential to run faster. GPU Boost intelligently monitors graphics work load and increases the clock speed whenever possible. The result is that the GPU always performs at its peak and you get the highest framerate possible. Watch the GPU Boost Video


NVIDIA Adaptive Vertical Sync

NVIDIA Adaptive Vertical Sync

Nothing is more distracting than framerate stuttering and screen tearing. The first tends to occur when framerates are low, the second when framerates are high. Adaptive V-Sync is a smarter way to render frames. At high framerates, V-sync is enabled to eliminate tearing, at low frame rates, it's disabled to minimize stuttering. It gets rid of distractions so you can get on with gaming.


NVIDIA 3D Vision™ Ready

NVIDIA 3D Vision® Ready1

NVIDIA 3D Vision brings a fully immersive, stereoscopic 3D experience to the PC. A combination of high-tech wireless glasses and advanced software, 3D Vision transforms hundreds of PC games into full stereoscopic 3D. Get up to 2x monitor and keyboard brightness with NVIDIA 3D LightBoost technology4. In addition, you can enjoy 3D movies and 3D digital photographs from 3DVisionLive.com in eye popping, crystal-clear quality.


NVIDIA Surround with Up To Four Monitors

NVIDIA Surround with Up To Four Monitors2

Nothing is as breathtaking as playing your favorite games across three monitors. At 5760 x 1080, the expanded field of view fully engages human peripheral vision and provides for the most immersive experience in racing and flight simulators. Add in a fourth display to keep tabs on chat, email or web while you are gaming.


Two New Anti-aliasing Modes: FXAA and TXAA

TXAA AntiAliasing

Antialiasing helps to smooth out jagged lines in games. Existing techniques like MSAA are effective at removing jagged lines in still images but struggle with crawling and shimmering artifacts when the player is in motion. TXAA is a new antialiasing mode that combines MSAA, temporal filtering, and post processing for the highest edge quality and minimal shimmering during gameplay.


NVIDIA SLI Technology

NVIDIA SLI® Technology3

Used by the most demanding gamers worldwide, SLI lets you link up to three GeForce GTX 660 together for astounding performance. And with NVIDIA's track record for fast and frequent software updates, you'll not only get the best performance in existing games, but future games too.


NVIDIA PhysX Technology

NVIDIA PhysX® Technology

Full support for NVIDIA PhysX technology, enabling a totally new class of physical gaming interaction for a more dynamic and realistic experience with GeForce.

1 - NVIDIA 3D Vision requires 3D Vision glasses and a 3D Vision-Ready monitor. See www.nvidia.in/3dvision for more information.
2 - NVIDIA 3D Vision Surround requires 3D Vision glasses and three matching 3D Vision-Ready displays. In addition a DisplayPort to Dual-link DVI adapter may be required to connect one of the 3D Vision Surround monitors. See www.nvidia.in/surround for more information.
3 - A GeForce GTX 660 GPU must be paired with another GeForce GTX 660 GPU (graphics card manufacturer can be different) with the same frame buffer size. SLI requires sufficient system cooling and a compatible power supply. Visit www.nvidia.in/sli for more information and a listing of SLI-Certified components.
4 - Requires NVIDIA 3D LightBoost monitor or notebook.

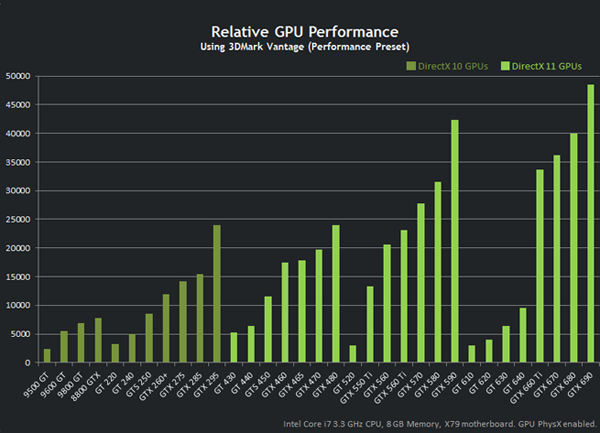

Relative GPU Performance

Specifications

NVIDIA GeForce GTX 660

GPU Engine Specs

CUDA Cores

960

Base Clock

980 MHz

Boost Clock

1033 MHz

Texture Fill Rate

78.4

Memory Specs

Memory Speed ( Gbps )

6.0

Memory Amount

2048 MB

Memory Interface

192-bit GDDR5

Max Bandwidth

144.2

Card Features

FXAA and TXAA

SLI Ready

Purevideo

3D Vision

PhysX

Programming Environment

CUDA

DirectX

11

OpenGL

4.3

Bus Type

PCI-E 3.0

3D Gaming

Blu Ray 3D

Specifications

Maximum Digital Resolution

4096x2160

Max VGA Resolution

2048x1536

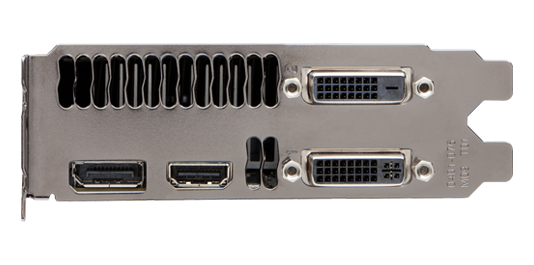

Media Connection

  • Dual Link DVI-D
  • DisplayPort
  • Dual Link DVI-I
  • HDMI

Multi-Display

HDCP

HDMI

HDMI Audio

Internal

Dimensions

Height

11.12 cm / 4.376 Inches

Length

25.4 cm / 9.5 Inches

Width

Dual Slot

Power and Temperature

Maximum Temperature

97 C

Power Consumption

140 W

Minimum Power Requirement

450 W

Power Connections

6-pin

Maximum Digital Resolution - 3840x2160 at 30Hz or 4096x2160 at 24Hz supported over HDMI. 4096x2160 (including 3840x2160) at 60Hz supported over Displayport. Support for 4k tiled MST displays requires 326.19 driver or later.



Where To Buy

Support

Hardware Support

Technical Support, RMA requests, replacements, and warranty issues for your NVIDIA designed and built graphics cards will be handled by NVIDIA.
Please click here to be directed to the GeForce Graphics Cards by NVIDIA customer support page. If you purchased your GeForce graphics card from one of our board partners, click here.

Downloads

Drivers

Drivers

Download the latest release or beta drivers for your product



Product appearance may vary by manufacturer
