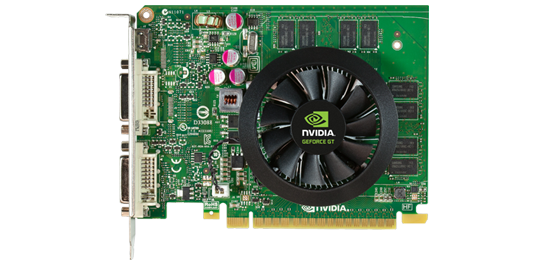

NVIDIA GeForce GT 640

The NVIDIA® GeForce® GT 640 graphics card brings the web, HD videos, photos, and PC games to life.

Checking for products...
Where To Buy

Overview

Every PC deserves great graphics. The NVIDIA® GeForce® GT 640 graphics card taps into the powerful next-generation GeForce architecture to deliver premium multimedia performance and reliable PC gaming — every time.

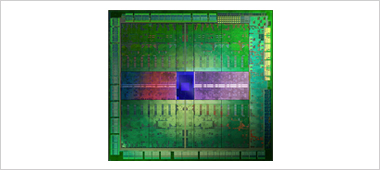

Kepler Architecture

Kepler Architecture

Kepler is our most advanced GPU architecture yet. Optimized for DirectX 11, Kepler is not only fast, but ultra power efficient.

Smoother Framerates

Smoother Framerates

Adaptive V-Sync intelligently renders each frame to minimize tearing while maximizing performance.

Features

Kepler GPU Architecture

Kepler GPU Architecture

NVIDIA's Kepler GPU architecture has been designed from the ground up not just for maximum performance, but optimal performance per watt. The new SMX streaming multiprocessor is twice as efficient as the prior generation and the new geometry engine draws triangles twice as fast. The result is world class performance and the highest image quality in an elegant and power efficient graphics card.


NVIDIA Surround with Up To Four Monitors

NVIDIA Surround with Up To Four Monitors1

Simultaneously drive up to four independent 1080p displays for the ultimate multimedia or productivity workspace and expand a single application across all three displays for an immersive viewing perspective.


3D Blu-Ray Support

3D Blu-Ray Support2

Connect your PC to any 3D enabled TV over HDMI and enjoy a cinematic 3D experience in your home with seamless support for 1080p Blu-ray 3D discs.


NVIDIA Adaptive Vertical Sync

NVIDIA Adaptive Vertical Sync

Nothing is more distracting than framerate stuttering and screen tearing. The first tends to occur when framerates are low, the second when framerates are high. Adaptive V-Sync is a smarter way to render frames. At high framerates, V-sync is enabled to eliminate tearing, at low frame rates, it's disabled to minimize stuttering. It gets rid of distractions so you can get on with gaming.


New Anti-aliasing Mode: FXAA

New Anti-aliasing Mode: FXAA

Anti-aliasing smoothes out jagged edges but can be demanding on framerates. FXAA is a new antialiasing technology that produces beautiful smooth lines with minimal performance impact. And with Kepler based GPUs, you'll be able to enable FXAA in hundreds of game titles through the NVIDIA Control Panel.



1 - NVIDIA 3D Vision Surround requires 3D Vision glasses and three matching 3D Vision-Ready displays. In addition a DisplayPort to Dual-link DVI adapter may be required to connect one of the 3D Vision Surround monitors. See www.nvidia.in/surround for more information.
2 - NVIDIA 3D Vision requires 3D Vision glasses and a 3D Vision-Ready monitor. See www.nvidia.in/3dvision for more information.

Specifications

GeForce GT 640 GDDR5

GPU Engine Specs

CUDA Cores

384

Graphics Clock ( Mhz )

1046

Texture Fill Rate

16.7

Memory Specs

Memory Speed ( Gbps )

5.0

Memory Amount

1024 MB

Memory Interface

64-bit GDDR5

Max Bandwidth

40.0

Card Features

FXAA and TXAA

3D Vision

PhysX

OpenGL

4.3

Bus Type

PCI-E 3.0

Specifications

Maximum Digital Resolution

2560x1600

Max VGA Resolution

2048x1536

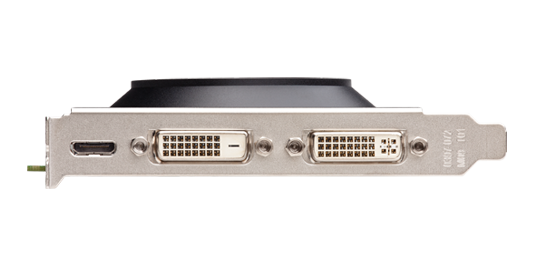

Media Connection

  • VGA
  • HDMI
  • Dual Link DVI-D

Multi-Display

HDCP

HDMI

HDMI Audio

Internal

Dimensions

Width

Dual Slot

Power and Temperature

Maximum Temperature

95

Power Consumption

49 W

Minimum Power Requirement

300 W


GeForce GT 640

GPU Engine Specs

CUDA Cores

384

Processor Clock

900

Graphics Clock ( Mhz )

891

Texture Fill Rate

28.8

Memory Specs

Memory Speed ( Gbps )

1.8

Memory Amount

2048 MB

Memory Interface

128-bit DDR3

Max Bandwidth

28.5

Card Features

Purevideo

3D Vision

PhysX

Programming Environment

CUDA

DirectX

11

OpenGL

4.2

Bus Type

PCI-E 3.0

3D Gaming

Blu Ray 3D

Specifications

Maximum Digital Resolution

4096x2160

Max VGA Resolution

2048x1536

Media Connection

  • Dual Link DVI-I
  • Dual Link DVI-D
  • Mini HDMI

Multi-Display

HDCP

HDMI

HDMI Audio

Internal

Dimensions

Height

4.38 Inches

Length

5.70 Inches

Width

Dual Slot

Power and Temperature

Maximum Temperature

98

Power Consumption

65 W

Minimum Power Requirement

350 W


Where To Buy

Support

Hardware Support

Technical Support, RMA requests, replacements, and warranty issues for your NVIDIA designed and built graphics cards will be handled by NVIDIA.
Please click here to be directed to the GeForce Graphics Cards by NVIDIA customer support page. If you purchased your GeForce graphics card from one of our board partners, click here.

Downloads

Drivers

Drivers

Download the latest release or beta drivers for your product



Product appearance may vary by manufacturer
